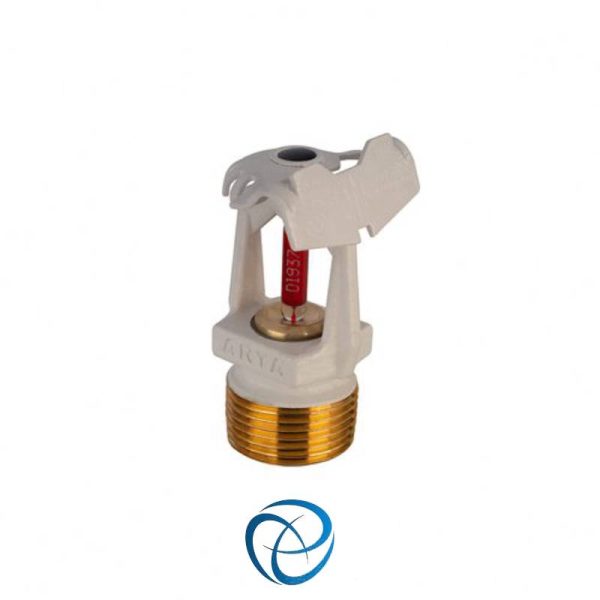

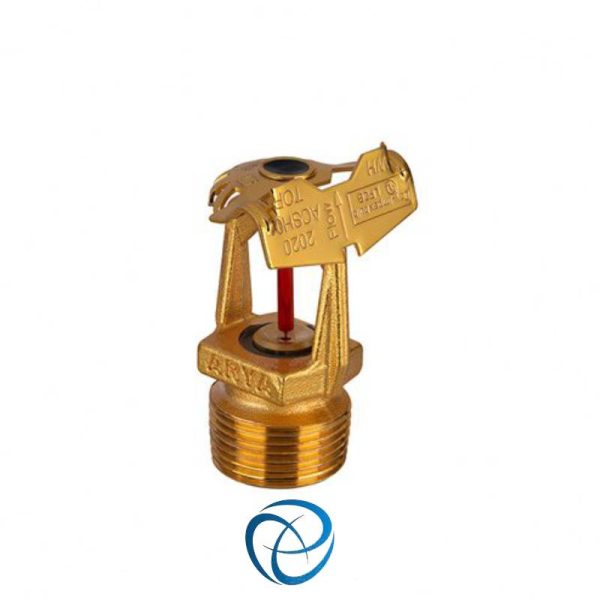

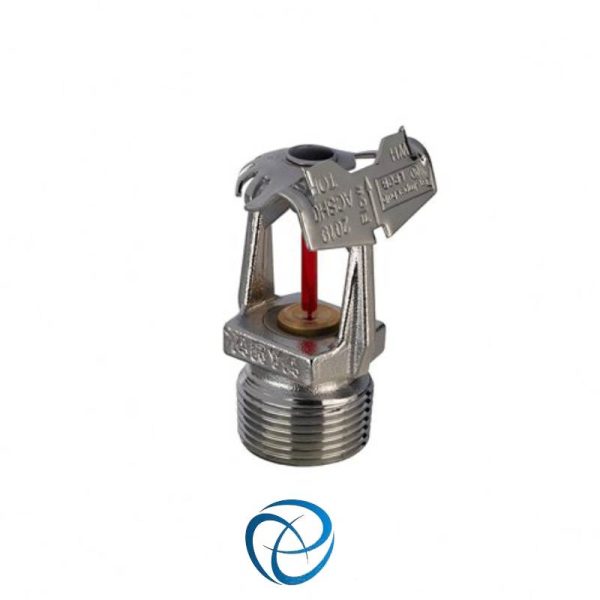

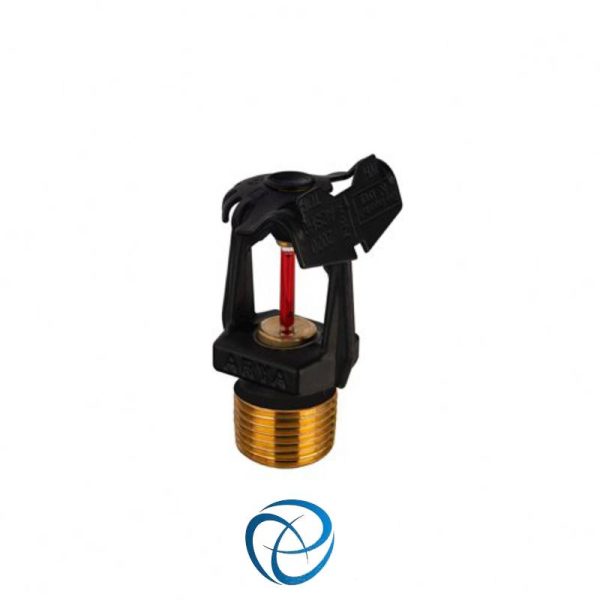

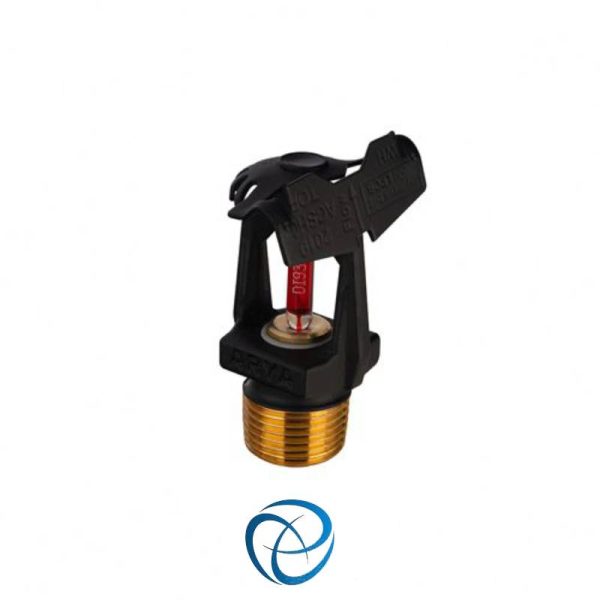

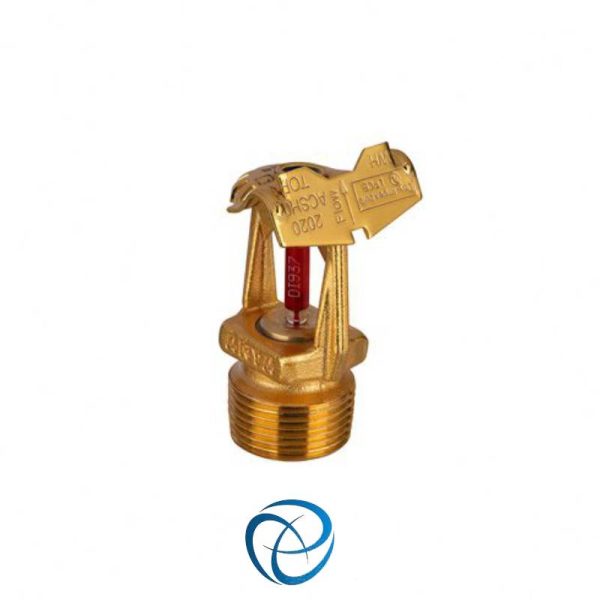

Aria wall-mounted sprinkler

Features of Aria wall sprinkler:

  • It has two types of quick reaction and standard reaction
  • Production in white polyester, black polyester, gold (plating) and silver (chrome plating) coatings
  • Produced in three thread diameters: 3.8, 1.2, and 3.4 inches
  • Made with very strong copper base alloy
  • The ability to design and produce in various types of assessment k-factor=57, 8, 115
  • Installation on the wall of the building and the pattern of spraying the quarter sphere downwards
  • Installation in the corridor, staircase, and narrow spaces, emergency staircase, hotels, space under the stairs

The sprinkler is the most effective automatic fire extinguishing system in the world. Each sprinkler system ends up in a small, but technological piece, which is called a sprinkler head or simply sprinkler. Upper, lower, and wall sprinklers are three examples of these technological parts, each of which is used for specific environments. Diva sprinklers are used for three important reasons. 1) It is difficult or impossible to access the pipes of the sprinkler system installed in the roof. 2) Architectural designs and interior architectural elements do not consider it appropriate to install sprinklers on the roof. 3) It is not possible to use other sprinklers.

Aria wall sprinkler is designed and produced in the Aria Coupling collection in different types of response sensitivity, thread size, color and plating, discharge rates and a wide range of working temperatures. These sprinklers are often used in corridors and staircases and in special conditions where the upper and lower sprinklers cannot be used. Obtaining a standard license, speed and precision in operation, a wide range of choices, being equipped with a glass bubble approved by international standards, and a quality beyond national standards make Aria sprinklers a permanent choice. Uniquely transforms for different applications.

Additional information

Temperature sensitive glass bubble

Day-Impex UK brand

Operating temperature

suitable for the color of the glass bubble from 57 to 182 degrees Celsius

Sealing

steel washer made of nickel-chromium alloy with double coating

Working pressure

between 0.5 and 12 Bar

Maximum hydrostatic pressure resistance

30 Bar

Sensitivity

standard reaction RTI=87 and quick reaction RTI=25

Production and testing under the requirements of standards

NFPA13, UL199, DINEN12259
