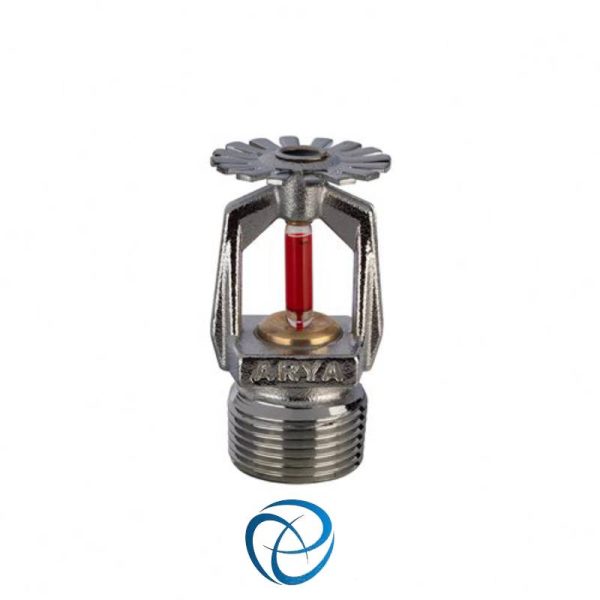

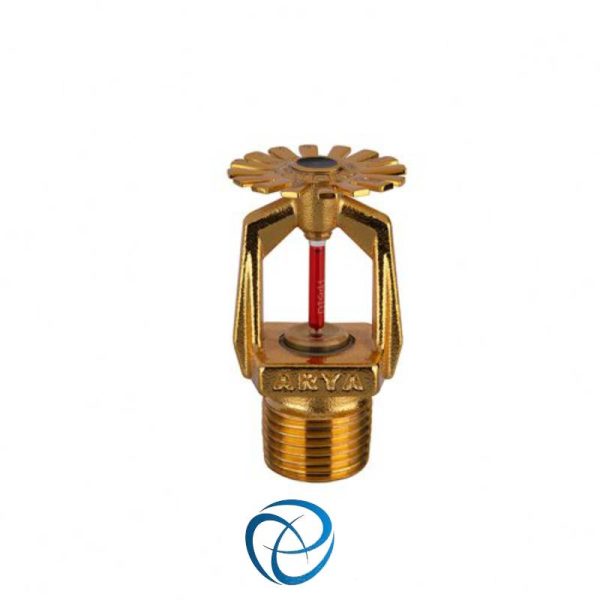

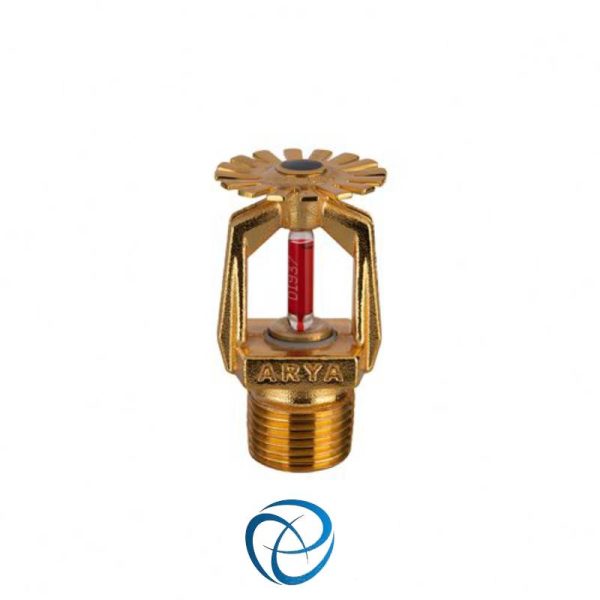

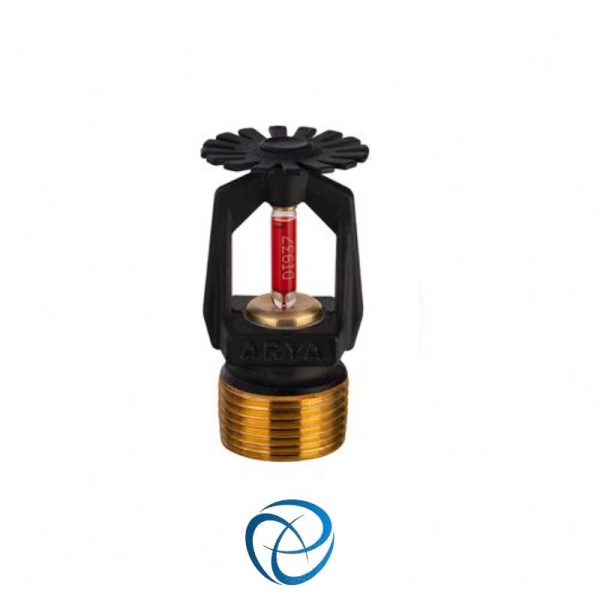

Aria bottom sprinkler

Features of the Arya bottom sprinkler:

  • It has two types of sensitivity, fast reaction and standard reaction
  • Production in white polyester, black polyester, gold (plating) and silver (chrome plating) coatings
  • Production in three thread diameters: 3.8, 1.2, and 3.4 inches
  • Production in three thread diameters: 3.8, 1.2, and 3.4 inches
  • Suitable for residential, office, commercial buildings, schools, hospitals, hotels, and other low-risk environments (according to standard classification)
  • Minimum working pressure: 0.5 bar; Maximum working pressure: 12bar; Test pressure: 34.5bar; Final pressure: 48bar
  • Operating temperature: according to the color of the glass bubble from 57 to 182 degrees Celsius
  • Production and testing in accordance with UL199, EN 12259 and NFPA13 standard requirements
  • Discharge factor: 57, 80 and 115 (based on the SI measurement system)

According to safety experts, sprinkler is the most effective automatic fire extinguishing system in the world. Each sprinkler system eventually leads to a sprinkler head. The lower female sprinkler is one of the types of sprinklers that are used in residential, commercial and industrial buildings.

Aria female lower sprinkler is one of the products of Aria Coupling collection. This sprinkler is designed and produced in the types of reaction sensitivity, thread sizes, paint and plating coatings, discharge rates, and a wide range of working temperatures in the Arya Coupling group. Acquiring the standard license, speed and precision in operation, a wide range of choices, being equipped with a glass bubble approved by international standards, and a quality beyond national standards, make Aria sprinkler a permanent choice. Nazir has converted for different applications

Additional information

Temperature sensitive glass bubble

Day-Impex UK brand

Operating temperature: according to the color of the glass bubble from 57 to 182 degrees Celsius • Sealing

steel washer made of nickel-chromium alloy with double coating

Working pressure

between 0.5 and 12 Bar

Maximum hydrostatic pressure resistance

30 Bar

Sensitivity

standard reaction RTI=87 and quick reaction RTI=25

Production and testing under the requirements of standards

NFPA13, UL199, DINEN12259
