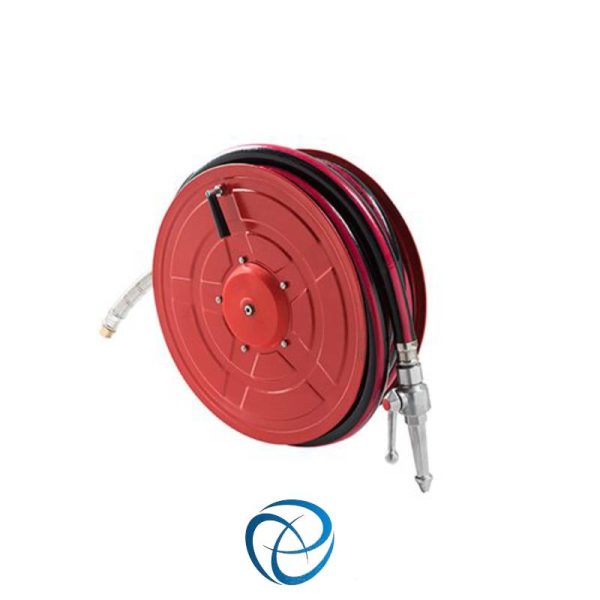

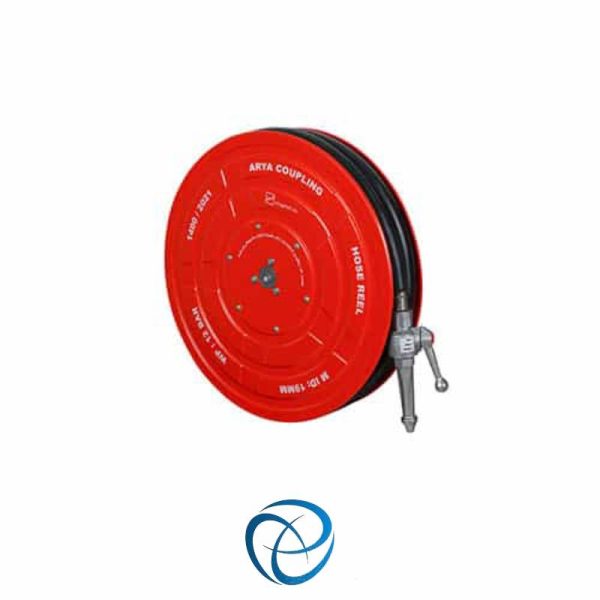

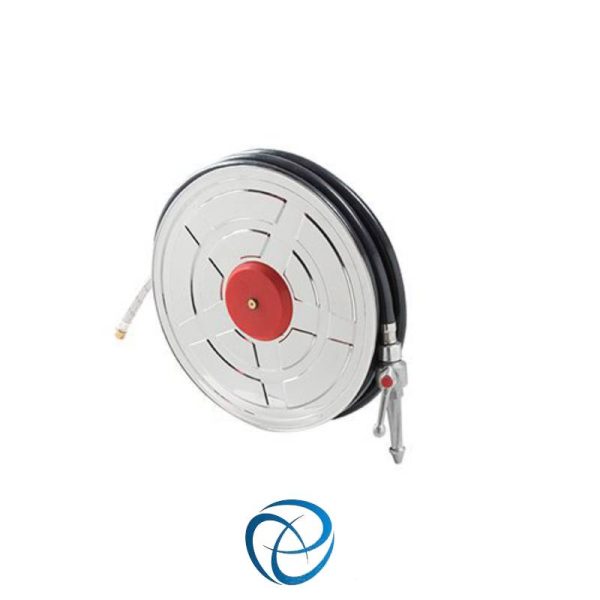

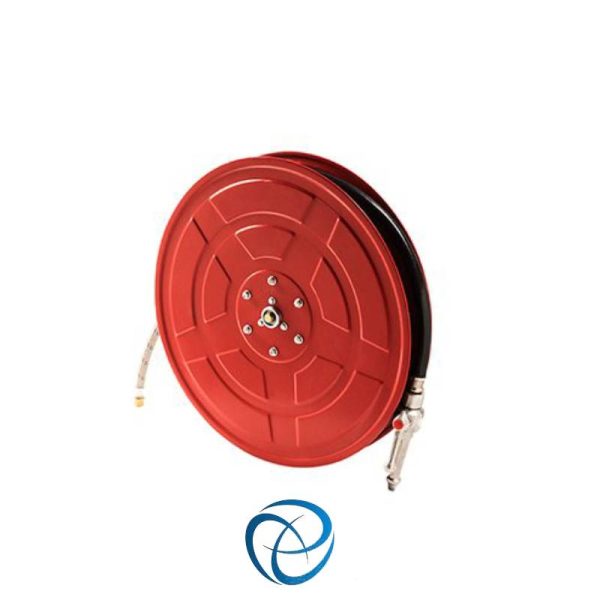

Fire hose rail

Features of Ariacoupling fire hose rail:

  • Equipped with an internal water supply system of one piece of brass with nickel-chrome coating to comply with the standard drainage capacity, high resistance to corrosion.
  • Use of corrosion-resistant shafts, screws and nuts and holders.
  • The use of thick pressed steel sheet with deep grooves in the manufacture of pulley plates, in order to increase strength and prevent distortion
  • Very resistant electrostatic powder paint coating after several washing steps, resistant to environmental factors and corrosion

The fire hose rail is one of the water fire extinguishing equipment designed for use by ordinary users and untrained people. The hose rail can be installed inside the fire box or used individually. The use of integrated internal brass water supply system guarantees the long-term and perfect operation of the hose rail.

Aria Coupling’s standard fire hoses are equipped with an integrated internal brass water supply system and are made of high quality parts and fittings. This product is installed together with the fire box inside urban and industrial buildings. The specialized production of all hose rail parts within the collection, obtaining Iran’s national standard license and the approval of the fire department are among the most important features of Ariacoupling standard hose rail. During the production process and after complete assembly, Ariacoupling hose rails are subjected to hydrostatic test by the quality control laboratory unit to ensure the correctness of its operation. Also, all the properties and performance tests according to EN BS 1-671 standard and Iran’s national standard No. 22157-1 are performed on the final product in Aria coupling laboratory.

Additional information

Manufacturing materials

Use of thick pressed sheet to make high strength reel

Pressure

Semi-hard hose strength test up to 40 Bar pressure

Standard

Hosrail hose manufactured according to BS EN694 standard requirements

Technical Specifications

• Use of three-layer semi-hard hose of Ariakupling to make hose rail
Hose rail made according to the requirements of BS EN694 standard
• Electrostatic powder paint coating after multi-stage washing
• Use of thick pressed sheet to make high strength reel
• Plating of all parts and connections of the reel to prevent corrosion
• Use of standard bearings for smooth movement of the reel
• Semi-hard hose strength test up to 40 Bar pressure
